Small DC Servo Motor 100 Watt 57mm 1/26 Reduction Ratio 9.3Nm Output Torque

Product Categories
Shenzhen Jiayu Mechatronic Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Small DC Servo Motor 100 Watt 57mm 1/26 Reduction Ratio 9.3Nm Output Torque

  • 1
  • 2

Place of Origin : China

Brand Name : Jiayu

Model Number : EBS57R-130A-26XP4Q-A3KL-S1-00

Certification : CE

Packaging Details : package

MOQ : 2pcs

Price : Negotiable

Delivery Time : 10-15days after payment

Payment Terms : TT

Supply Ability : 500pcs per month

Protect Feature : Drip-proof

Warranty : 3months-1year

Output Torque : 9.3Nm

Rated Voltage : DC 24V

Rated Current : 7.9A

Rated Speed : 2000RPM

Rated Power : 100W

Poles : 8

Encorder : 2400

Gear Ratio : 1:26

Contact Now

Small DC Servo Motor 100 Watt 57mm 1/26 Reduction Ratio 9.3Nm Output Torque

Product description

Speed gate turnstile servo motor series are designed to working with swing barrier gate, speed gate and tripod turnstile control pedestrian entering and exiting, adopts 2400 lines encoder, suitable for indoor and outdoor situation, easy to install, and the dc servo motor widely use for applications like stadium, apartment, gym, museum, station, library and factory etc.

Advantages

►High-resolution position feedback with 2400 lines

►With servo closed loop control, can achieve 3 times current overload, strong push resistance is greater than the brushless force.

►300mm acrylic door panel, opening time up to 0.3 seconds

►Cooperate with the servo vector algorithm, can achieve sensitive anti-pinch protection.

Features:
►Round body, integrated structure of motor and reducer, suitable for the core structure of channel gate;
►The motor comes with a 2400-line incremental encoder and a standard 1:26 reduction ratio to achieve high-precision control of the movement of the movement;
Specification
item value
Warranty 3months-1year
Place of Origin China
Brand Name JIAYU
Model Number EBS57R-130A-26XP4Q-A3KL-S1-00
Usage Turnstiles
Certification ce
Type SERVO MOTOR
Torque 9.3Nm
Construction Permanent Magnet
Speed(RPM) 2000RPM
Continuous Current(A) 7.9A
Efficiency IE 4
Rated Voltage DC 24V
Rated Current 6.5A
Rated Torque 7.3Nm
Rated Speed 100RPM
Rated Power 100W
Poles 8
Encorder 2400
Gear Ratio 1:26
Product description

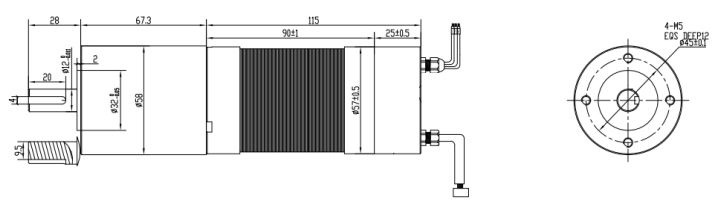

Small DC Servo Motor 100 Watt 57mm 1/26 Reduction Ratio 9.3Nm Output TorqueSmall DC Servo Motor 100 Watt 57mm 1/26 Reduction Ratio 9.3Nm Output TorqueSmall DC Servo Motor 100 Watt 57mm 1/26 Reduction Ratio 9.3Nm Output TorqueSmall DC Servo Motor 100 Watt 57mm 1/26 Reduction Ratio 9.3Nm Output Torque

Small DC Servo Motor 100 Watt 57mm 1/26 Reduction Ratio 9.3Nm Output Torque

Company profile

Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.

Small DC Servo Motor 100 Watt 57mm 1/26 Reduction Ratio 9.3Nm Output Torque

FAQ

1.Are you Factory or Trader?
we are factory,and have professional R.&D team as introduced in company information.
2.How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment.
3. What can you buy from us?
Access servo drive,speed gate drive,turnstile controller,swing gate drive,barrier gate controller,servo motor,mechanism.
4. Why should you buy from us not from other suppliers?
We are with multiple invention patents and software copyrights such as servo drive and channel gate controltechnology.
Committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automaticgate control movement.
5. What is your after-sale service?
Free maintance within 12 months guarantee,lifetime consultant,Professional solutions in installation and maintance.
6.Do you get the relevant certifications?
All products are made according to ISO90o1,CE requirements.
7.How about the delivery?
-Sample:3-5days
-Bulk order:15-30 days.
